Gas Sensor
High Quality Electrochemical Gas Sensor
Sensor technology is the basis of all Senko products. We are constantly investing in R&D to develop our own products that can not be imitated by developing our own technology.Now, it is not competitive to make a product with the developed sensor. We will develop new products that will win in the market by developing everything from sensor to product according to the requirements of the market.
Hydrogen chloride (HCl)
Electrochemical
0 - 20 ppm

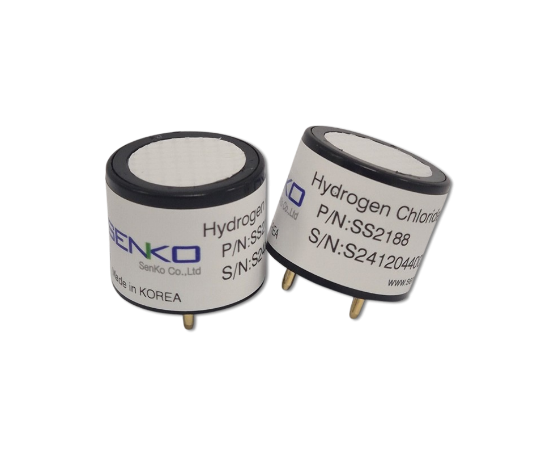

Model #SS2188 (HCl) 요약정보
Applications
• Portable and fixed gas detectors
• Leakage and TLV-monitoring
• Semiconductor industry
• Fast response and stable baseline
Specification
|
Performance Characteristics |
|
|---|---|
| Output Signal | 200±50 nA / ppm |
|
Typical Baseline Range (pure air, @ 20℃) |
≤ ±0.5 ppm HCl equivalent |
|
Baseline Shift (-20℃ ~ 50℃) |
≤ ±2 ppm typical |
| Response Time (T90) |
< 50 seconds |
| Filter |
None |
|
Measurement Range |
0-20 ppm |
|
Maximum Overload |
40 ppm |
|
Linearity |
Linear |
|
Repeatability |
≤ ±2% of signal |
|
Recommended Load Resistor |
10 ohms |
|
Resolution (Electronics Dependent) |
< 0.5 ppm typical |
|
Bias Volage |
0 mV |
| Environmental | |
|
Temperature Range Continuous |
-20℃ to +50℃ |
|
Pressure Range |
800 to 1200 mbar |
|
Operating Humidity Range |
15% to 90% RH |
|
Lifetime |
|
| Long Term Output Drift |
< 5% per annum |
|
Recommended Storage Temp. |
0℃ to 20℃ |
|
Expected Operating Life |
> 24 months in air |
|
Standard Warranty |
24 months from the date of dispatch |
|
Intrinsic Safety Data |
|
| Maximum at 40ppm |
10 μA |
|
Maximum o/c Voltage |
< 1.0V |
|
Maximum s/c Current |
< 0.1A |
