SENSOR
Technology for Human life
Gas Sensor
High Quality Electrochemical Gas Sensor
Sensor technology is the basis of all Senko products. We are constantly investing in R&D to develop our own products that can not be imitated by developing our own technology.Now, it is not competitive to make a product with the developed sensor. We will develop new products that will win in the market by developing everything from sensor to product according to the requirements of the market.
Vinyl chloride (C2H3Cl)
Electrochemical
0 - 20 ppm

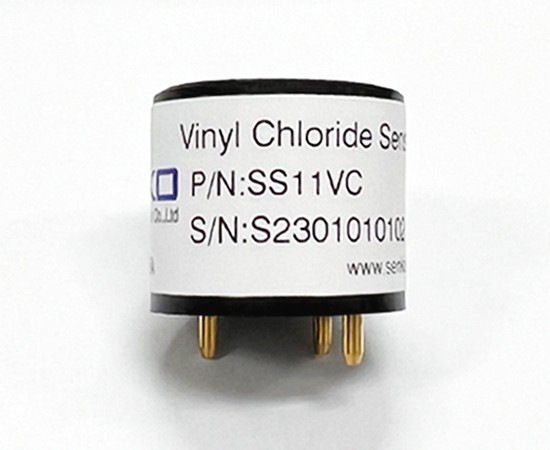

Model #SS11VC (C2H3Cl) 요약정보
Specification
|
Performance Characteristics |
|
|---|---|
| Output Signal | 450±100 nA/ppm |
|
Typical Baseline Range (pure air) |
≤±1 ppm NO equivalent |
| T90 Response Time |
<70 seconds |
|
Measurement Range |
0-20 ppm |
|
Maximum Overload |
50 ppm |
|
Linearity |
Linear |
|
Repeatability |
≤±5% of signal |
|
Recommended Load Resistor |
10 ohms |
|
Resolution (Electronics Dependent) |
≤0.5 ppm typical |
|
Bias Voltage |
+300mV |
| Environmental | |
|
Temperature Range Continuous |
-20℃ to +50℃ |
|
Pressure Range |
800 to 1200 mbar |
|
Operating Humidity Range |
15% to 90% Rh |
|
Life Time |
|
| Long Term Output Drift |
≤20% per annum |
|
Recommended Storage Temp. |
0℃ to 20℃ |
|
Expected Operating Life |
≥24 months in air |
|
Standard Warranty |
24 months from the date of dispatch |
|
Intrinsic Safety Data |
|
| Maximum at 50ppm |
0.2mA |
|
Maximum o/c Voltage |
<1.0V |
|
Maximum s/c Current |
<0.1A |
