Gas Sensor
High Quality Electrochemical Gas Sensor
Sensor technology is the basis of all Senko products. We are constantly investing in R&D to develop our own products that can not be imitated by developing our own technology.Now, it is not competitive to make a product with the developed sensor. We will develop new products that will win in the market by developing everything from sensor to product according to the requirements of the market.
Alcohol
Electrochemical
0 - 0.4% BAC

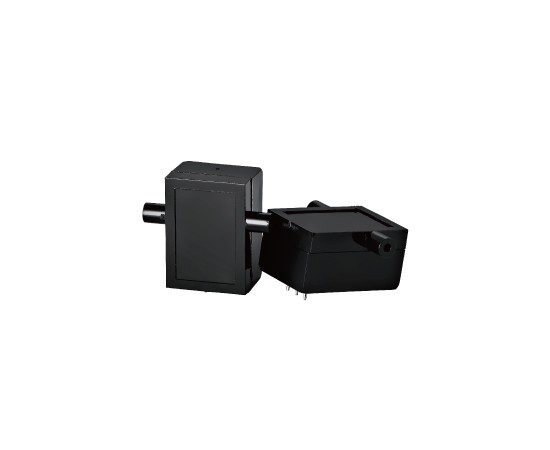

Model #SS21A8 (Alcohol) 요약정보
Applications
• Ideal for portable instrument
• Alcohol detector applications
• Etc.
Specification
|
Performance Characteristics |
|
|---|---|
| Output Signal | Depends on sample volume |
| Measurement Range |
0~0.4% BAC |
|
Maximum Overload |
0.6% BAC |
|
Response Time (Clear to 5% of peak) |
~ 10 seconds |
|
Linearity |
Linear |
|
Repeatability |
≤±3% |
|
Recommended Load Resistor |
10 ohms |
|
Resolution (Electronics Dependent) |
≤0.001% BAC |
| Environmental | |
|
Temperature Range Continuous |
-20℃ to +50℃ |
|
Operating Humidity Range |
15% to 90% Rh |
|
Life Time |
|
| Long Term Output Drift |
≤5% per annum |
|
Recommended Storage Temp. |
0℃ to 20℃ |
|
Expected Operating Life |
≥24 months in air |
|
Standard Warranty |
24 months from the date of dispatch |
