Gas Sensor
High Quality Electrochemical Gas Sensor
Sensor technology is the basis of all Senko products. We are constantly investing in R&D to develop our own products that can not be imitated by developing our own technology.Now, it is not competitive to make a product with the developed sensor. We will develop new products that will win in the market by developing everything from sensor to product according to the requirements of the market.
Nitrogen dioxide (NO2)
Electrochemical
0 - 20 ppm

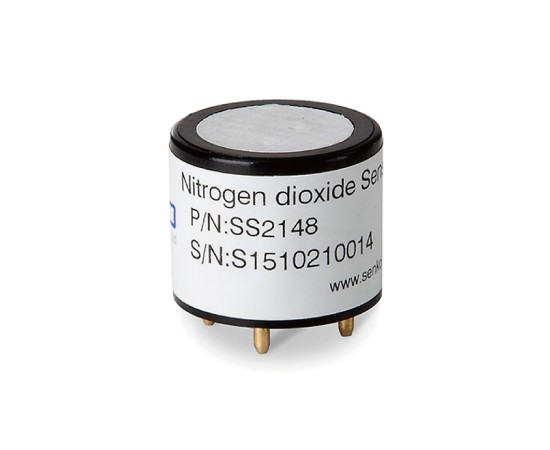

Model #SS2148 (NO2) 요약정보
Applications
• Ideal for portable instrument
• Industry safety (ambient air monitoring appllications)
• Diesel engine vehicles exhaust (car repair Facilities)
• Management ventilation in garages
• Etc.
Specification
|
Performance Characteristics |
|
|---|---|
| Output Signal | -220±50 nA/ppm |
|
Typical Baseline Range (pure air) |
±1 ppm NO2 equivalent |
| T90 Response Time |
<30 seconds |
|
Measurement Range |
0-20 ppm |
|
Maximum Overload |
40 ppm |
|
Linearity |
Linear |
|
Repeatability |
≤±5% |
|
Recommended Load Resistor |
10 ohms |
|
Resolution (Electronics Dependent) |
≤0.1 ppm typical |
| Environmental | |
|
Temperature Range Continuous |
-20℃ to +50℃ |
|
Pressure Range |
800 to 1200 mbar |
|
Operating Humidity Range |
15% to 90% Rh |
|
Life Time |
|
| Long Term Output Drift |
≤10% per annum |
|
Recommended Storage Temp. |
0℃ to 20℃ |
|
Expected Operating Life |
≥24 months in air |
|
Standard Warranty |
24 months from the date of dispatch |
|
Intrinsic Safety Data |
|
| Maximum at 200ppm |
40mA |
|
Maximum o/c Voltage |
<1.0V |
|
Maximum s/c Current |
<0.1A |
